Name: 1200mm multi angle fitting welding machine
Brand: TOPHYDRAULIC
Price: 1 USD

Place of Origin : china

Brand Name : TOPHYDRAULIC

Certification : ISO9001,

Model Number : TOPM1200

MOQ : 1pcs

Price : FOB,C&F

Packaging Details : wooden case

Delivery Time : 30days

Supply Ability : 10000PCS

Model : TOPM1200

range : 710 to 1200mm

Temp Error : ±5℃

Total power : 73.5kw/380V

Heating plate power : 62KW/380V

Milling Cutter Power : 4KW/380V

Hydraulic Power : 7.5KW/380V

weight : 17500KGS

Contact Now

Brief: multi-angle Fitting welding machine is suitable for PE,PP,PVDF fittings in workshop.

Feature: Removable PTFE coated heating plate.

Electric planing tool with safety limit switch.

Low starting pressure and high relaible seal structure.

separate two-channel timer records time in soaking and cooling phases with alert.

high and accurate and shockproof pressure meter indicates clearer readings.

Digital pressure meter is installed on machines.

Reliable performance,easy control.

Welding range: 710mm,800mm,900mm,1000mm,1200mm

Application:0°-90° elbow,tee,cross,45° and 60° Y (optional parts should be used)

Total power:73.5kw/380V

Heating plate power:62KW/380V

Milling Cutter Power: 4KW/380V

Hydraulic Power: 7.5KW/380V

Max Heating Temperature: 270℃

Temp Error: ±5℃

Total Weight:17500KGS

Pressure Adjustable Range: 0-16Mpa

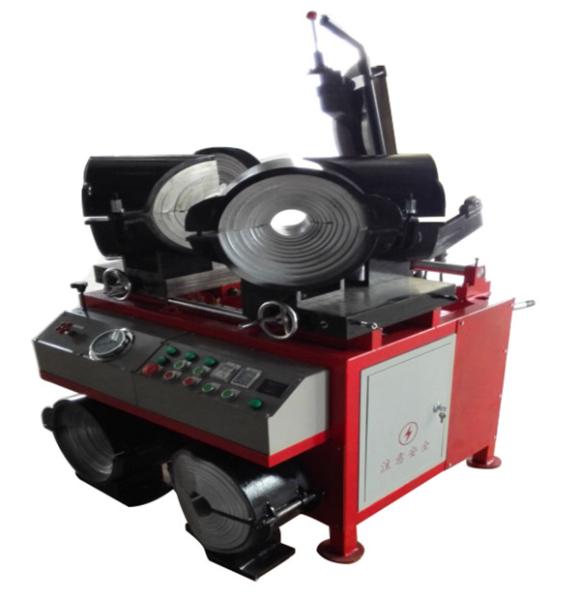

1200mm multi angle fitting welding machine Images
